SFP功能說明：

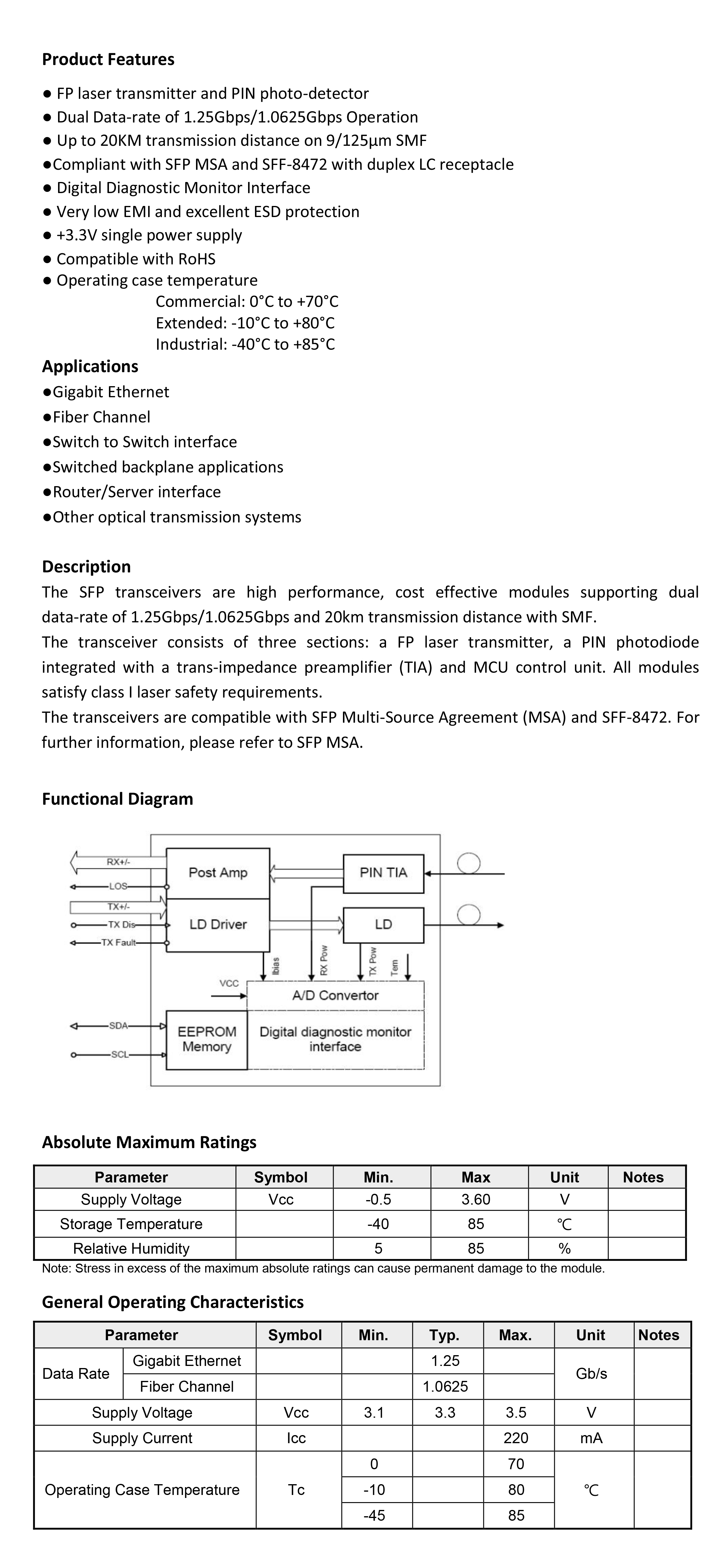

• The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
  The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
  The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

商品特點：

• FP laser transmitter and PIN photo-detector
• Dual Data-rate of 1.25Gbps/1.0625Gbps Operation
• Up to 20KM transmission distance on 9/125μm SMF
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitor Interface
• Very low EMI and excellent ESD protection
• +3.3V single power supply
• Compatible with RoHS
• Operating case temperature
• Commercial: 0°C to +70°C
• Extended: -10°C to +80°C
• Industrial: -40°C to +85°C

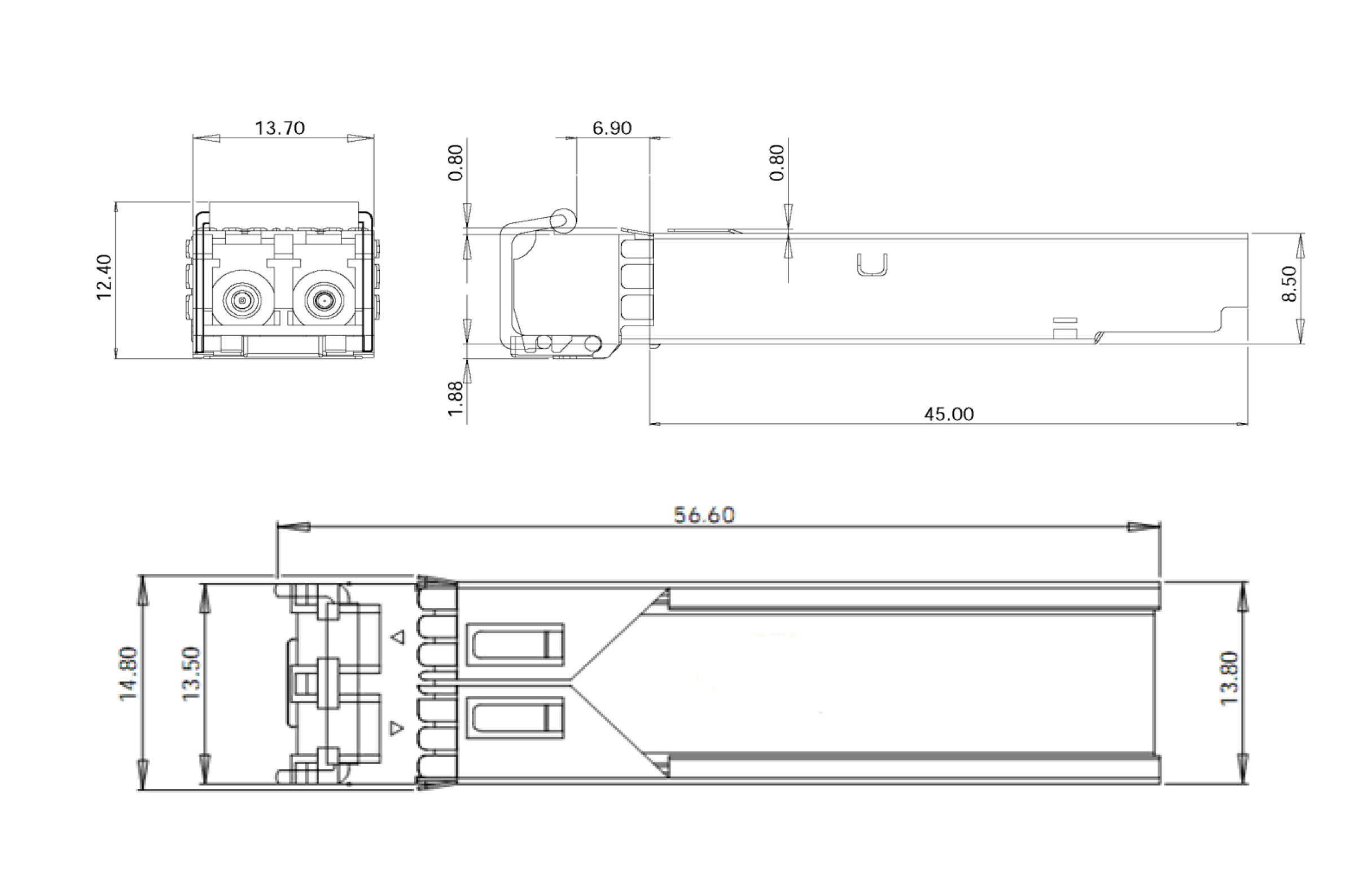

SFP模組商品尺寸：
